What Is a Headlamp Assembly and How Does It Affect Your Vehicle?

-Struggling with dim headlights makes night driving a hazard¹. You might think it's just a bulb, but the real problem is often the entire, complex unit failing you.

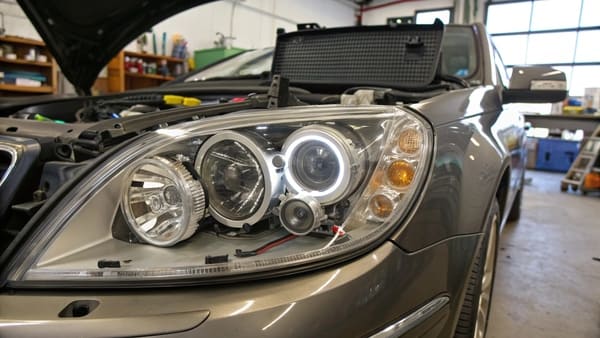

A headlamp assembly is the complete headlight unit mounted on your vehicle². It includes the outer housing, lens, internal reflectors, and sockets for the bulbs. It's a self-contained component designed to be installed and replaced as a single piece³, protecting the sensitive optics inside.

Now that you know the basic definition, you might be surprised to learn just how many critical parts are packed into that single unit. It's much more than just a case with a lightbulb. Let's break down what's really going on inside and why each piece is so important for performance and safety.

What Exactly Is a Headlamp Assembly?

Many people confuse a simple headlight bulb with the entire assembly⁴. This mix-up can lead to buying the wrong parts, wasting time and money on repairs that don't fix the root problem.

A headlamp assembly is the entire headlight unit housed in a single casing. It contains the lens, reflector, bulb sockets, and sometimes the bulbs themselves⁵. It’s engineered as a complete, replaceable component for your vehicle.

A headlamp assembly is not just a container for a light bulb; it’s an engineered system designed for three main jobs: lighting the road, protecting the internal components, and defining the look of the vehicle. The manufacturing process for these parts, especially the main plastic housing, is incredibly demanding. I learned this the hard way on one of my first big projects. We were working with a client from Pakistan, producing a custom headlamp housing. Standard injection molding machines just can't achieve the precision needed. The process requires at least three stages, and the cooling stage is by far the most difficult. Any mistake there, and the final product can warp. We also had to add color pigments, which meant stopping the machine, opening the mold, and making the cooling process even trickier. On that first run, the plastic housing "shrank" a bit more than we expected after cooling. I was worried, but the client ended up loving the slightly different look. We got lucky, but it taught me a valuable lesson about the high level of precision this work requires.

What Are the Key Parts Inside a Headlamp Assembly?

You see a single unit on your car, but it's a complex system inside. If one part fails, you might not know whether you need to replace just that part or the entire assembly.

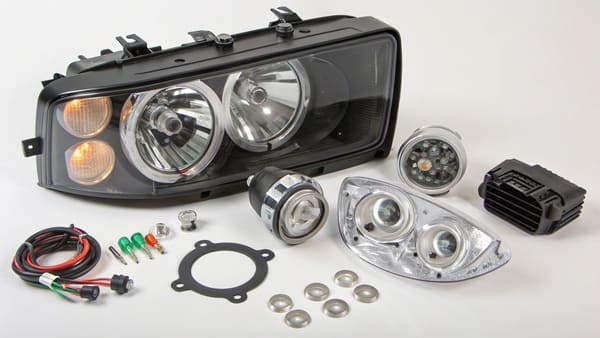

A standard headlamp assembly includes the main housing, a clear outer lens, an inner reflector, the bulb or light source, and wiring connectors⁶. Modern units may also contain ballasts, cooling fans, or control modules⁷.

Let's dive deeper into what makes up a typical assembly. Each part has a specific function, and when we manufacture these for our OEM partners, we have to get every single detail right, from the optical design to heat management. Understanding these components helps you diagnose problems or specify exactly what you need for a custom project.

As you can see, it's a carefully balanced system. A failure in the seal can lead to a foggy lens, while a degraded reflector can cause a dim, scattered beam, even with a brand new bulb.

How Does a Headlamp Assembly Actually Create a Beam of Light?

You flip a switch, and light appears. But the process is surprisingly precise. Without this precision, your headlights would just be bright blobs, blinding other drivers and failing to light the road effectively.

The assembly works by generating light from a bulb, which is then captured and focused by either a reflector or a projector lens. The outer lens protects the system and helps shape the final beam pattern on the road.

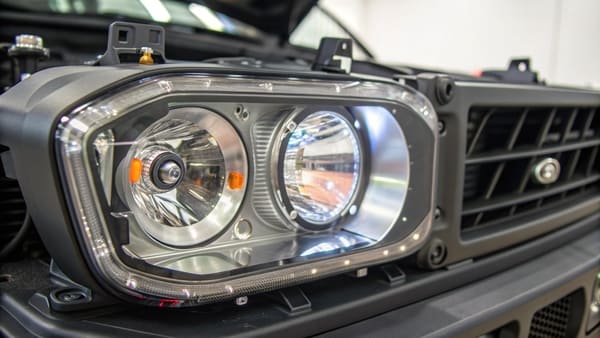

The way an assembly directs light is what separates a good headlight from a bad one. There are two primary methods used in modern vehicles: reflector and projector.

Reflector Headlights

This is the more traditional design.

• The bulb sits at the focal point of a large, chrome-finished bowl (the reflector).
• The shape of the reflector is carefully designed to gather as much light as possible and cast it forward in a specific pattern.
• The inner surface often has many small, complex facets (a multi-faceted design) to control the beam shape and minimize glare.
• This style is cost-effective and reliable, which is why it's still common on many vehicles today.

Projector Headlights

This design offers more control and a sharper look.

• The bulb shines into a smaller reflector, which directs the light toward a glass projector lens.
• A small metal shield, called a cutoff shield, sits between the reflector and the lens. This shield is what creates the sharp, horizontal cutoff line you see with modern headlights. It blocks the light from shining upward into the eyes of oncoming drivers.
• The projector lens then focuses this controlled light into a very intense, well-defined beam.
• This technology is essential for high-intensity discharge (HID) and many LED systems, as it prevents their intense brightness from causing dangerous glare.

As a manufacturer, we help our clients decide which technology is best for their needs, whether it's the value of a reflector system or the premium performance and styling of a projector system.

Conclusion

A headlamp assembly is more than just a bulb; it's a critical safety system. Understanding its parts helps you maintain your vehicle and drive safely at night.
