-Struggling with a weak car air conditioner? A small, overlooked part could be the culprit, leading to expensive repairs if ignored. Understanding it is your first step to a solution.

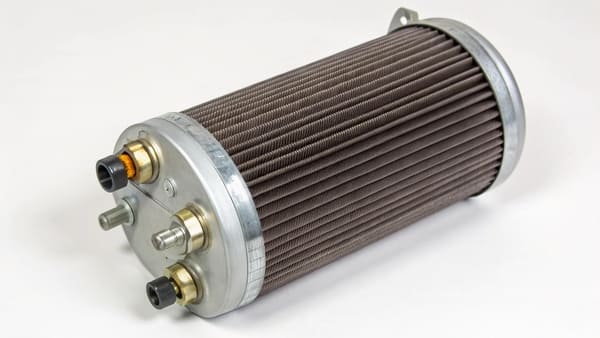

A car's HVAC drier filter, also known as a receiver-drier, is a component that removes moisture and filters out debris from the refrigerant.1 It acts as a gatekeeper, protecting vital parts like the compressor and expansion valve from corrosion and blockages, ensuring the system's efficiency and longevity.2
The air conditioning system in a car is a closed loop, but it's not perfectly sealed forever. Small amounts of moisture and tiny particles can get in over time.3 If you just ignore them, they can cause huge problems down the road. The drier filter is your system's main line of defense. Think of it as the liver and kidneys of your AC system—it cleans the "blood" (the refrigerant) so everything else can function properly. In the following sections, I’ll break down exactly what it is, why it's so important, and how it actually does its job. This will help you make better decisions about maintenance and repairs.
What Is an HVAC Drier Filter?
You hear mechanics mention the "drier," but it just sounds like another technical term. This confusion can make it hard to understand why you need to replace it.

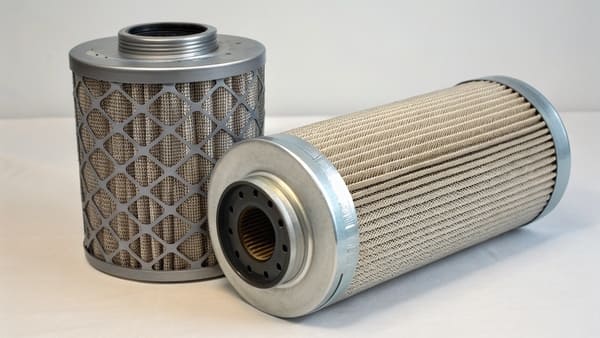

An HVAC drier filter is a can-like part in your car's AC system filled with a special drying material called a desiccant and a fine mesh filter. Its only job is to absorb water and catch solid contaminants circulating within the refrigerant.
Let’s look a little closer at what’s inside. The drier filter isn't just an empty can. It contains two critical elements that work together to clean and dry the refrigerant.
First, you have the desiccant. This is a material that is extremely good at absorbing moisture, kind of like the little silica gel packets you find in new shoe boxes. In a drier filter, the desiccant is usually made of materials like silica gel or a synthetic substance called a molecular sieve.4 As the liquid refrigerant passes through, the desiccant pulls any water molecules out of it.
Second, there is the filter media. This part is responsible for catching solid particles. Over the life of an AC system, tiny bits of metal can wear off the compressor, or other small debris can find its way into the lines. The filter, which is often a fine mesh screen or a pad of fibrous material, traps these particles before they can travel further into the system and cause blockages or damage to other sensitive components.5 All these components are housed in a sealed metal or aluminum canister designed to withstand the high pressures of the AC system.
Why Is an HVAC Drier Filter Important in Refrigeration and Air Conditioning Systems?
Skipping a drier filter replacement during an AC repair might seem like an easy way to save a few dollars. But this small saving can lead to a complete system failure.
The drier filter is critically important because it prevents moisture from creating corrosive acids and ice blockages.6 It also stops solid debris from clogging sensitive parts, protecting the expensive compressor and ensuring the entire AC system runs efficiently and reliably for years.7
Thinking of the drier filter as just another part is a mistake; it's a protective device for the most expensive components in your AC system. When it fails or becomes saturated, a chain reaction of problems begins.8 Let's break down exactly what happens.
| Problem Source | Effect on AC System | Consequence for You |
|---|---|---|
| Moisture | Mixes with refrigerant to form hydrochloric acid. This acid corrodes aluminum parts like the evaporator and condenser from the inside out. | Leaks start to form, refrigerant is lost, and the AC stops cooling. You face expensive part replacements. |
| Moisture (Freezing) | Water can freeze into ice crystals at the expansion valve or orifice tube, which is a very narrow point in the system. | A blockage occurs, stopping refrigerant flow. Your AC will blow warm air or cool intermittently. |
| Solid Debris | Tiny metal shavings from normal compressor wear or other dirt can circulate through the system. | This debris will clog the expansion valve or condenser tubes, leading to high pressure and poor performance. Eventually, it can starve the compressor of oil, causing it to seize up and fail completely. |
The drier filter prevents all of this. By removing moisture, it stops acid and ice from ever forming. By trapping debris, it keeps the refrigerant path clear. This is why standard practice is to always replace the drier filter anytime the AC system is opened for service. The desiccant can only hold so much moisture, and once the system is exposed to the atmosphere, the drier is considered compromised. Protecting a $1,000 compressor with a $30 part is always a smart investment.
How Does an HVAC Drier Filter Work?
Your car's AC system can feel like a complex mystery. Not knowing how the parts work together makes it difficult to trust repair advice or understand what you're paying for.
High-pressure liquid refrigerant flows from the condenser into the drier filter. Inside, the desiccant material absorbs any trapped moisture, and a filter screen catches solid debris. Clean, dry refrigerant then exits the filter and continues its journey to the expansion valve.9
To really get it, let's follow the refrigerant. The compressor squeezes the refrigerant gas, making it hot and high-pressure. It then goes to the condenser (the radiator-like part at the front of your car), where it cools down and turns into a high-pressure liquid. This is where our drier filter comes in. The liquid refrigerant enters the drier filter, and its journey through the internal components begins.
The internal design is key, and from a manufacturing standpoint, this is where things get tricky. The plastic structures that hold the desiccant beads and filter pads must be made with incredible precision. If they fail, they could release the desiccant into the entire system, causing a catastrophic blockage that is very expensive to fix.10 The precision required for the injection molding of these parts is very high.
I learned this the hard way on one of my first projects making these internal plastic parts for a client in Pakistan. We were still refining our process, and the cooling stage of the molding was not perfect. After the parts came out of the mold, they "shrunk" more than we had calculated. We were very worried about delivering a bad product. But in a stroke of luck, the client found that the slightly smaller, denser parts actually fit better into their metal canisters during assembly! It was a fortunate accident, but it taught us a crucial lesson about how critical temperature control is during manufacturing. We have since perfected this process, but it highlights how a small detail in manufacturing can have a big impact on the final product's quality and reliability.
Conclusion
The HVAC drier filter is a small but vital guardian of your car's AC system. It removes harmful moisture and debris, protecting your investment and ensuring you stay cool on the road.11
