-Struggling to understand the complex tech in a Tesla battery? You want to know what makes it so powerful, but the information is too technical and scattered.

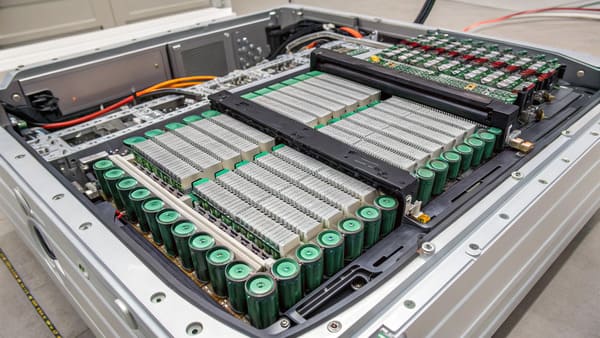

A Tesla battery pack contains thousands of individual cylindrical battery cells, which are organized into modules. It also includes a Battery Management System (BMS), a cooling system with coolant tubes, and a structural housing that protects all the components inside.1
This description sounds simple on the surface, but the real engineering magic is in how these parts are designed, assembled, and managed to work together. The level of precision required is something we've learned a lot about in our own manufacturing work. To truly understand what makes a Tesla go, we need to look closer at each component. Let's open up this "black box" and explore what's really going on inside.
What Components Are Inside a Tesla Battery Pack?
Confused by the jargon around EV batteries? Terms like BMS, cells, and modules can be overwhelming, making it hard to grasp the basics of what's inside.
The key components are the battery cells (like 18650 or 4680 types), battery modules that group these cells, the Battery Management System (BMS), a liquid cooling system, and the protective pack housing. These parts work together to deliver power safely and efficiently.
Dive Deeper
To really understand the pack, we need to break down its main parts. Think of it like a team where each player has a critical role.
The Individual Cells
These are the smallest and most fundamental units. For years, Tesla used cylindrical cells similar in shape to a standard AA battery, but larger. The common types are the 18650, the 2170, and the newer, larger 4680 cells. Each cell stores and releases electrical energy.
The Battery Modules
Individual cells are too small to power a car on their own. So, they are bundled together into larger groups called modules. These modules make the cells easier to manage, cool, and connect.
The Battery Management System (BMS)
This is the brain of the battery pack. The BMS is a sophisticated circuit board that constantly monitors the health of every cell. It checks voltage, current, and temperature to make sure everything operates safely. It also handles cell balancing, which ensures all cells charge and discharge evenly, extending the battery's life.2
The Cooling System
Batteries generate a lot of heat when charging or discharging quickly. The cooling system, usually a network of tubes filled with a glycol-based coolant, runs through the modules to pull this heat away. Keeping the temperature stable is crucial for performance and safety.
| Component | Primary Function |
|---|---|
| Battery Cells | Store and release electrical energy. |
| Battery Modules | Group cells into manageable, protected units. |
| BMS | Monitors and manages cell health, safety, and balancing. |
| Cooling System | Regulates temperature to ensure safety and longevity. |
| Pack Housing | Provides structural protection and seals components from the environment. |
How Is a Tesla Battery Pack Structured Internally?
Ever wonder how Tesla fits so much power into a flat pack under the car? The internal structure seems like a black box, leaving you curious about its design.

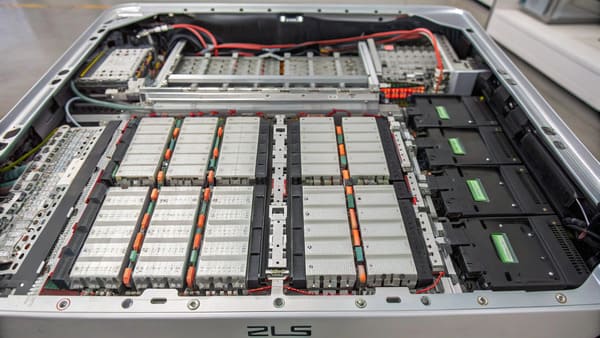

Internally, a Tesla battery pack is a highly organized array. Individual cells are first grouped into "bricks," which are then assembled into larger modules. These modules are arranged side-by-side and connected to the cooling system and BMS within a protective metal casing.
Dive Deeper
The structure is not just about fitting things in; it's about precision, safety, and performance. The assembly process is incredibly demanding and something we've had direct experience with in our factory.
From Cells to Modules
The basic building block is the cell. Hundreds of these cells are wired together in parallel and series to form a "brick." Several bricks are then combined to create a module. Finally, these modules are laid out flat to form the complete pack, which is then sealed in a strong metal case that also becomes part of the car's structure.3
Precision Assembly Challenges
Assembling these packs is extremely difficult. Standard assembly lines often can't meet the required precision. There are at least three critical stages, with thermal control calibration being the toughest. You need a highly controlled environment, which is why specialized factories in places like the Fujian coastal area or near Shanghai are often the only ones that can do it right. Simpler production lines just can't handle the temperature stability needed.
Another major challenge is filling the pack with thermal conductive gel. During this process, the equipment has to pause to refill the gel. To do this, you have to open the module chamber, which can disrupt the stable temperature you worked so hard to achieve.
I remember my first project involving related components for a customer from Pakistan. We were inexperienced, and after the modules were assembled and left to settle, we found significant gaps due to precision errors. Thankfully, the client was understanding and accepted the slight variance as a "fine-tuned spec." It was a stressful but valuable lesson. We perfected our process after that and have never made the same mistake again. It just shows how demanding this work truly is.
How Many Battery Cells Are Inside a Tesla Battery?
Hearing that a Tesla has "thousands" of batteries sounds vague. You want a real number, but it changes depending on the model and year, which can be confusing.
The number of cells in a Tesla battery varies by model and pack size. For instance, a classic Model S (85 kWh) using 18650 cells has 7,104 cells. A newer Model 3 Long Range using 2170 cells has around 4,416 cells.
Dive Deeper
The exact cell count depends on two main factors: the battery pack's total energy capacity (measured in kWh) and the type of cell used. Different cells have different sizes and energy densities, so the numbers change.
Cell Count by Model
Tesla has used several cell formats over the years, which directly impacts the total count. The 18650 cells are smaller, so you need more of them. The 2170 cells are larger and more energy-dense, so you need fewer. The new 4680 "tabless" cells are even bigger, further reducing the cell count.4
Here’s a simple breakdown for some popular models:
| Tesla Model | Pack Size (approx.) | Cell Type | Approx. Cell Count |
|---|---|---|---|
| Model S | 85 kWh | 18650 | 7,104 |
| Model 3 Long Range | 75 kWh | 2170 | 4,416 |
| Model Y Long Range | 75 kWh | 2170 | 4,416 |
| Model S Plaid | 100 kWh | 18650 | 7,920 |
| Cybertruck (est.) | 123 kWh | 4680 | 1,360 |
Why the Number of Cells Varies
The trend is clear: as battery technology improves, the cells become larger and hold more energy. Moving from 18650 to 2170, and now to 4680, means Tesla can build packs with the same or even more energy capacity using far fewer individual cells. This is a huge advantage. Fewer cells mean fewer connections, less complexity, lower weight, and reduced manufacturing costs. It simplifies the entire assembly process and makes the battery pack more efficient and reliable. This evolution is key to making electric vehicles more affordable and powerful.
Conclusion
A Tesla battery is a masterpiece of engineering. It combines thousands of cells, advanced management systems, and a complex cooling network, all assembled with extreme precision for peak performance.
